สถานที่กำเนิด:
ตงกวนประเทศจีน
ชื่อแบรนด์:
Fangsheng
ได้รับการรับรอง:
ISO9001:2015,IATF16949,RoHS,Reach,etc
หมายเลขรุ่น:
fs-tft
วิดีโอ
| Attribute | Value |
|---|---|

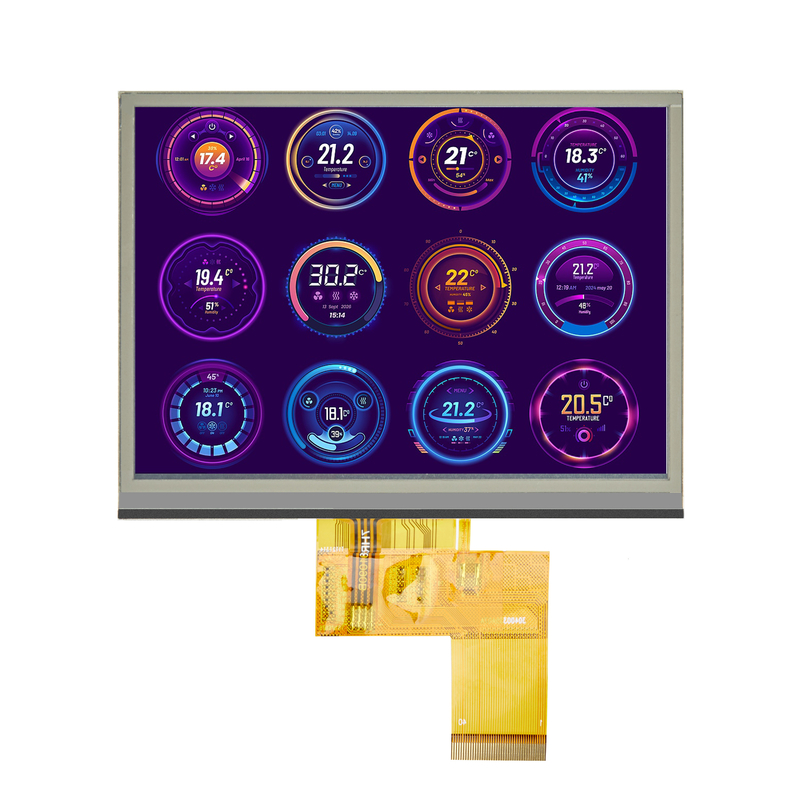

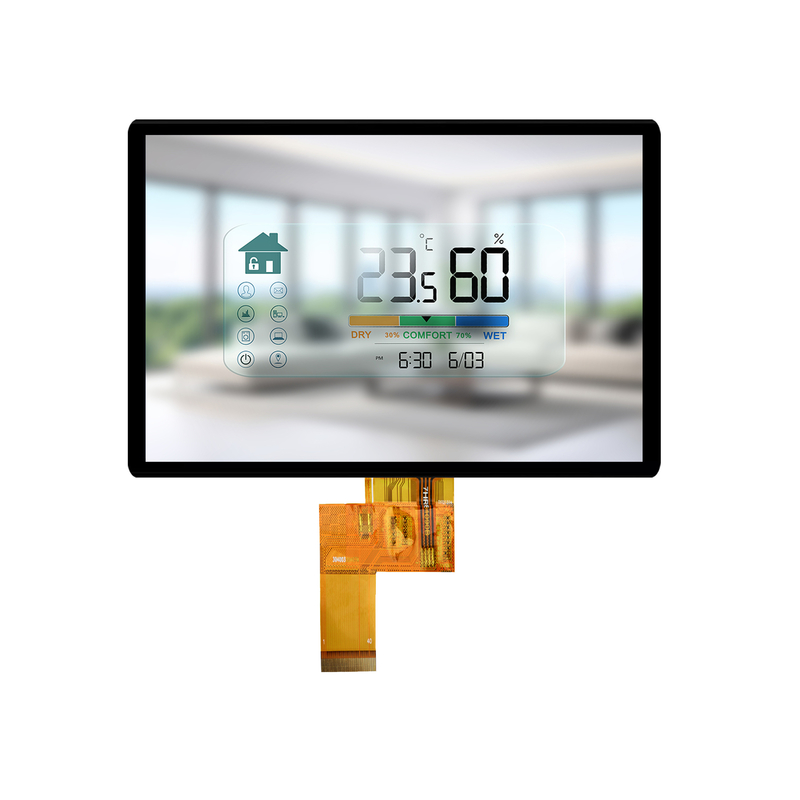

| Product Name | Custom 1000 Nits 7 Inch Medical Grade TFT Screen High Resolution LCD Panel for Medical Equipment |
| Size | 7 inch (Custom) |
| Interface | SPI/RGB/MIPI/LVDS, etc. |
| Resolution | 1024x600 (Custom) |
| Custom | PFC, CTP, Cover glass, etc. |
| Application | Industrial Control Medical Devices Smart Home, etc. |
| Driver IC | ILI9806E-2C, ST5091+ST5625, etc. |
TFT LCD modules are widely adopted in medical devices due to their clear image quality and reliable performance. They enable doctors and patients to view accurate medical data such as heart rate, blood pressure, or imaging results. High-brightness TFT LCD panels are especially suitable for operating rooms and outdoor medical equipment, where visibility is critical.
With customizable sizes, interfaces, and resolutions, TFT LCDs can be integrated into ultrasound systems, portable diagnostic tools, patient monitors, and infusion pumps. Their fast response and durability make them a preferred choice for modern medical technology.
| Parameter | Value |
|---|---|
| Resolution | 1024x600 |
| Interface | LVDS |
| Model | EK73215 & EK79001 |
| Type | V.A 12H |
| Touch Panel | No TP |
| Operating Temperature | -20℃~70℃ |
| Brightness | 620 nits |
| Outline Dimensions (mm) | 165.00*100.00*5.80 |
| Active Area (mm) | 154.21*85.92 |
